- Mobile Gantry
- Gantry Rails
- Tote Handling Unit
- Tote Transfer Robot
- Double Deep High-bay Racking
MIX Pro
High-bay Tote Comprehensive Solution

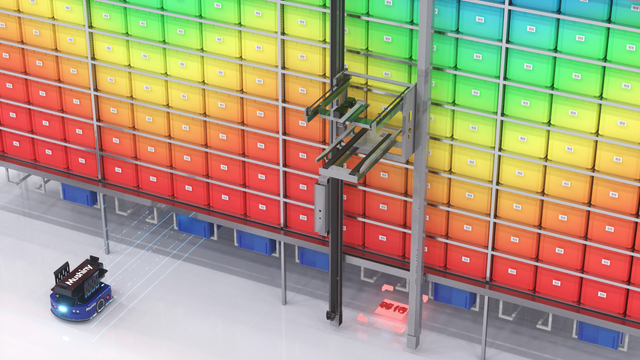

MIX Pro is a cutting-edge solution designed specifically for high-density tote storage environments. Its compact racking system,reaching heights of up to 12 meters with double-deep bays, optimizes storage density to achieve exceptional space utilization.With its mobile tote handling system, MIX Pro works seamlessly with tote transfer robots, creating an efficient Tote-to-personsystem that significantly enhances the speed and accuracy of operations.
The MIX Pro workstation boasts outstanding compatibility, supporting picking from MIX Pro totes，standard Layer-POD and Pallet-POD. This flexibility enables integrated storage and precise picking across diverse product categories. These advanced features position MIX Pro as the optimal choice for sophisticated warehouse operations. By facilitating efficient storage and
accurate picking across a broad range of categories, MIX Pro empowers businesses to enhance operational efficiency, reduce
costs, and deliver greater value.
accurate picking across a broad range of categories, MIX Pro empowers businesses to enhance operational efficiency, reduce
costs, and deliver greater value.
Product Information
Explore the powerful product capabilities of MIX Pro, a comprehensive solution for High-bay Tote
-
-
- Tote- Racking- Handling System

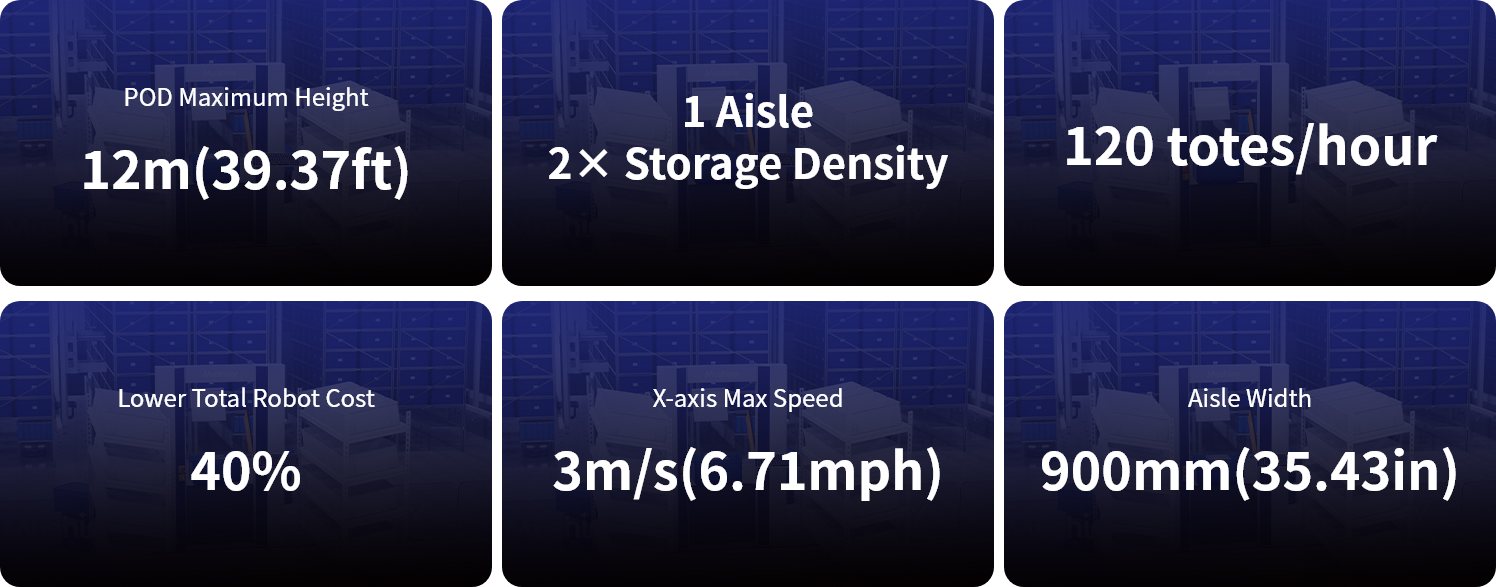

Product Features
-
High storage capacityRacking height up to 12 mTote spacing minimized to 20 mm

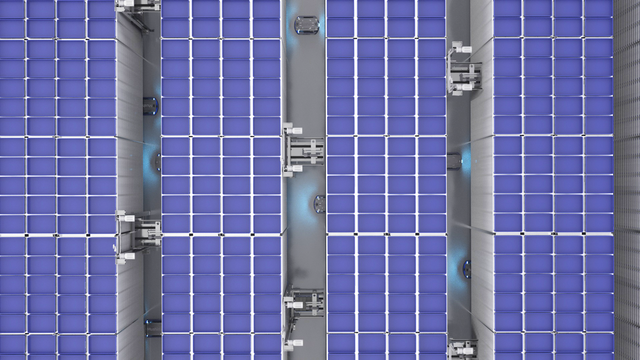

Aisle width narrowed to 900 mmTote load capacity up to 50 kgSupport double-deep storage and two-way movement of totes - High throughputSupports multi-gantry and system dispatching in single aisle
Horizontal and vertical movement up to 3m/s
No interference at ground level, free travel path for tote transfer robotsPowered by sliding contact line, eliminating charging downtime, enabling continuous operation - High ROI40% reduction in overall investment of robots
Low mechanical failure rate, low repair and maintenance cost
Low requirement on floor surface with suspended rail design - High compatibilityCustomizable tote grabbing mechanism with hook or clamping options
Flexible integration with conveyor, AMR, etc.
Supports both straight wall and tilt toteCustomizable racking height and associated gantry structureFlexible workstation layout with minimal spatial restrictions - Optimal designUnified control for tote handling and transfer robots, increasing efficiency
Multi-compartment tote design, picking indication for each compartmentAutomated slotting and heat mapping, ensuring dynamic task balancing between aisles for optimal efficiencySupport integrated dispatching of various robot systems, achieving seamless storage picking management of MIX Pro、standard Layer-POD and Pallet-POD
The best scenario of MIX Pro, a comprehensive solution for High-bay Tote
Use Case: High-density, high-throughput Tote-to-Person solutions that support unit picking, full tote picking, and buffer consolidation needs.
Industries: Apparel, General Merchandise, Hardware & Electronics, Pharmacy, Cosmetics, 3C, Books

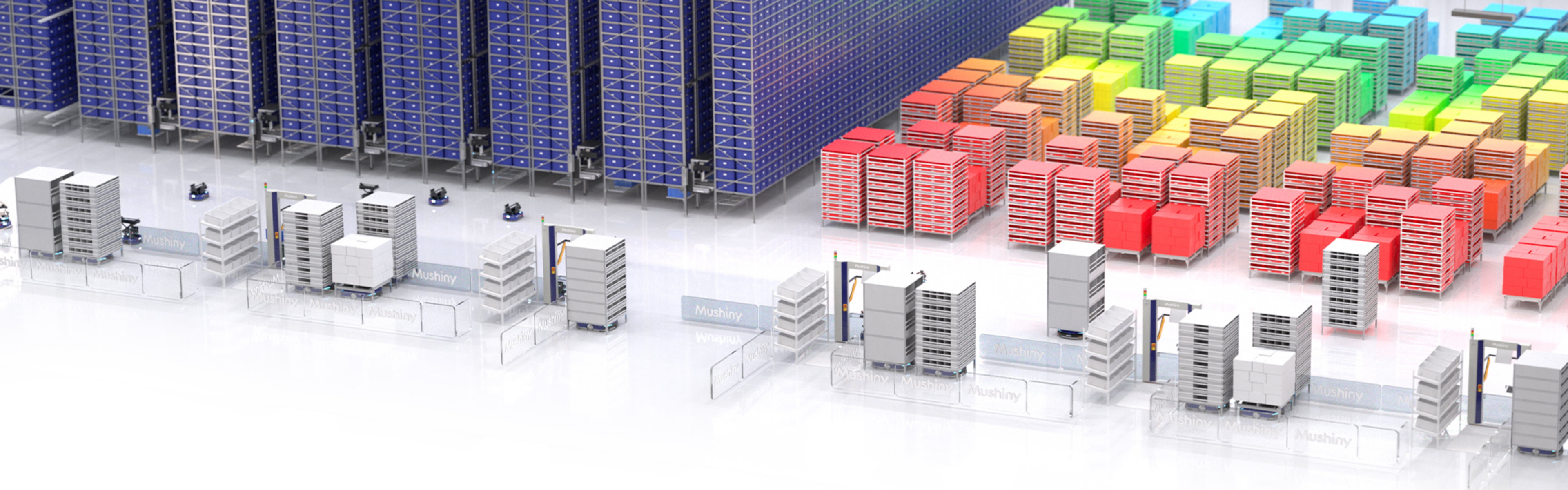

MIX Pro Integrated Solution for Diverse Categories:
- Mixed Dispatching Support
The same workstation supports order picking for MIX Pro totes, standard Layer-POD, and Pallet-POD, with high compatibility for stored product sizes, enabling full-category storage and picking in the same scenario diverse categories.
MIX Pro Tote-to-Person Solution:

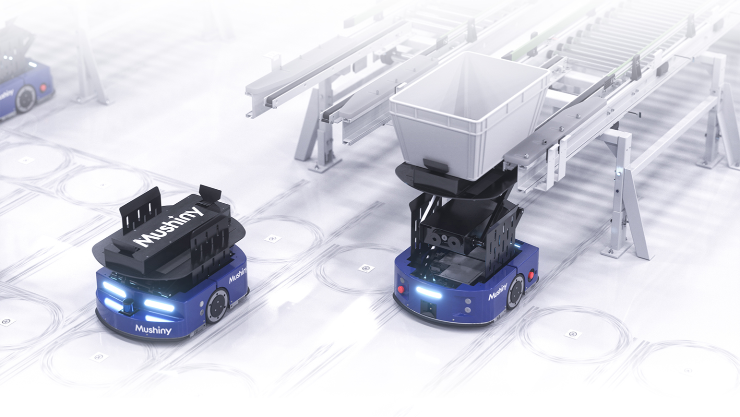

- Tote Transfer Robot + Picking Workstation

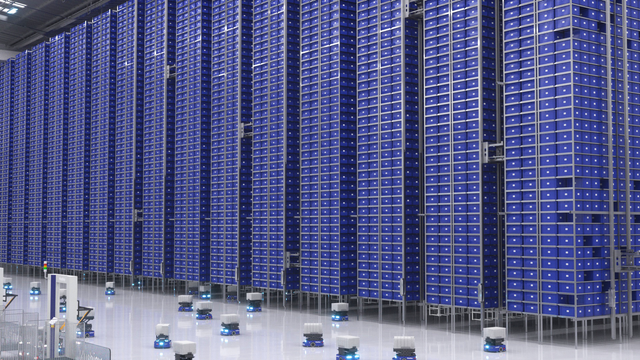

Combining high-bay double-deep racking with tote transfer robots to achieve a high-density and flexible tote-to-person solution.
MIX Pro High-Throughput Solution:
- Connecting Tote Handling system and conveyor system to achieve higher throughput
- Flexibly choose the Tote Transfer Robot + conveyor line combination scheme based on business scenarios and hroughput requirements
Main Products of MIX Comprehensive Solutions

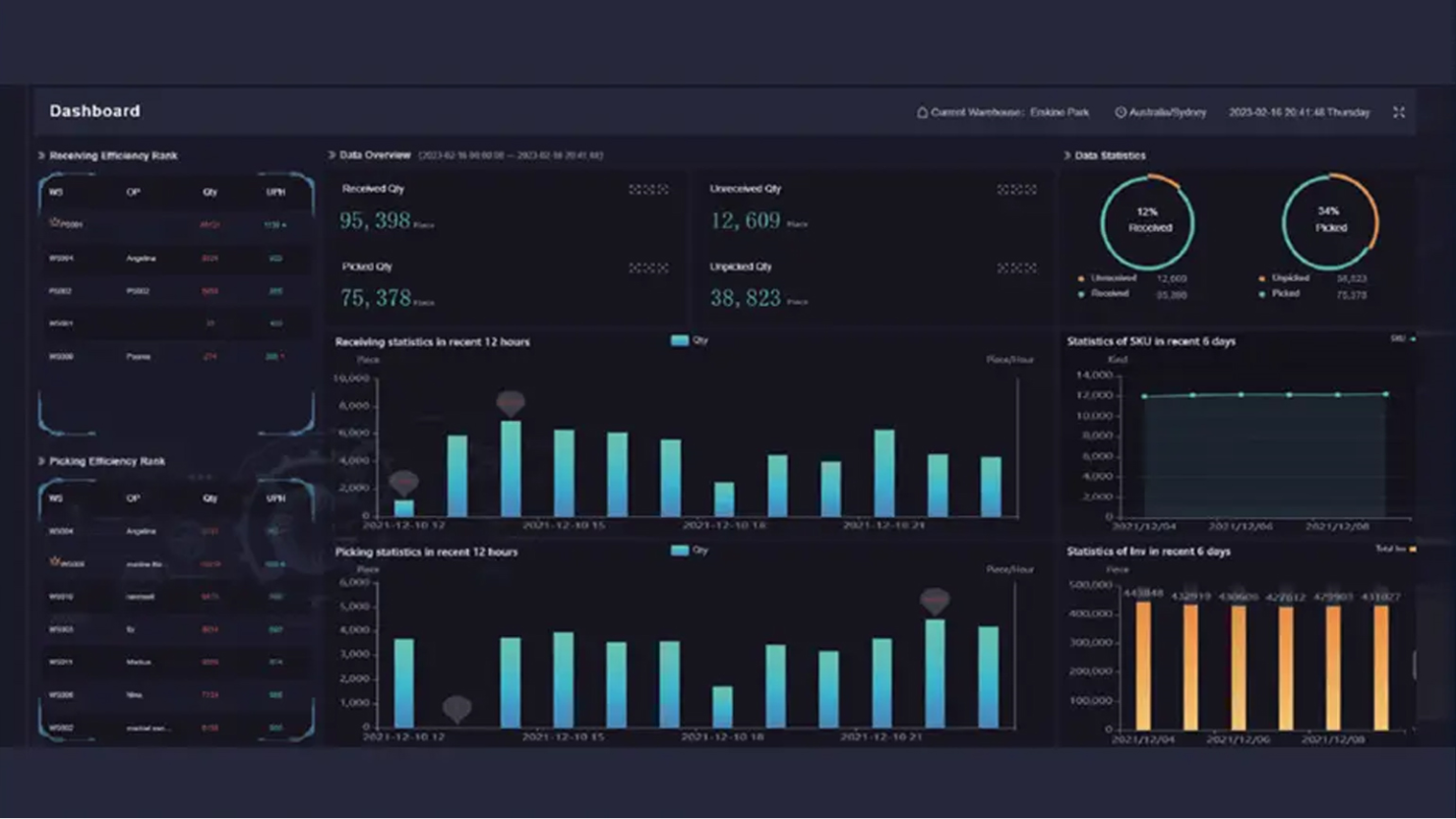

Explore the key products that make up our MIX integrated solutions. These include Cutting-edge technologies such as iRES , Warehouse AMR integration , and other advanced integrated automation tools. Our product range is designed to provide high performance and versatility in a variety of warehouse environments.
